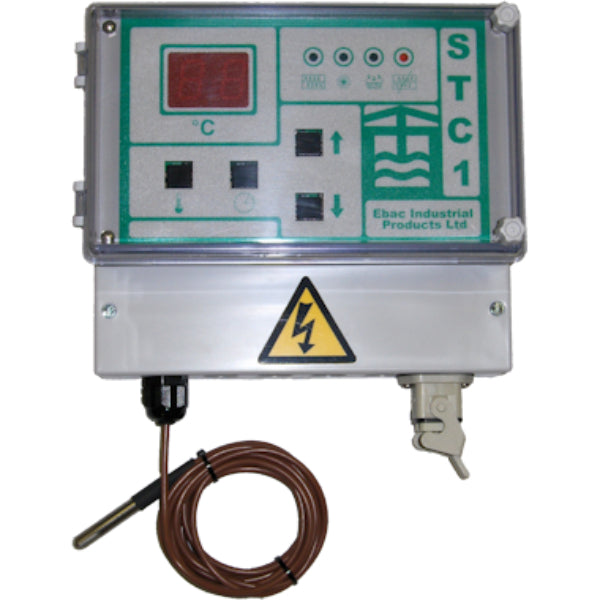

The EBAC STC1 Control System is an advanced electronic controller designed to optimize the operation of compatible EBAC lumber drying systems. Compatible with the LD800, LD82, LD3000, and FD100, the STC1 automatically manages drying cycles and temperature control to ensure efficient, consistent lumber drying while minimizing the risk of wood defects.

Operating on 110V or 230V, 50/60Hz power, the STC1 features proportional drying time control, adjustable temperature settings, electronic controls, vent control capability, and crossover control for precise kiln management. Its durable IP69-rated sealed enclosure provides excellent protection against dust and moisture, while the wall-mount design allows for convenient installation in lumber drying facilities.

Ideal for woodworking shops, sawmills, and commercial kiln operations, the STC1 simplifies kiln management and helps produce consistently high-quality dried lumber.

Key Features

  • Compatible with EBAC LD800, LD82, LD3000, and FD100 lumber dryers
  • Operates on 110V/230V, 50/60Hz
  • Electronic control system for precise kiln management
  • Adjustable temperature control
  • Proportional drying time control
  • Vent control capability
  • Crossover control function
  • Durable IP69-rated sealed enclosure
  • Wall-mount design for easy installation
  • Helps optimize drying performance and wood quality

Specifications

  • Part Number: 1352400
  • Height: 203 mm
  • Width: 222 mm
  • Depth: 108 mm
  • Weight: 1.2 kg
  • Voltage: 110/230V
  • Phase: 1
  • Frequency: 50/60Hz
  • Enclosure: IP69 Sealed Plastic Enclosure

What's Included

  • 1 × EBAC STC1 Control Panel
  • 1 × Owner's Manual

How It Works

The EBAC STC1 Control System monitors and controls the drying process by regulating both temperature and drying cycle timing. Using adjustable electronic controls, it automatically manages kiln conditions to maintain efficient moisture removal while protecting lumber from drying too quickly.

The controller can also manage vent operation and crossover functions, allowing the drying system to maintain optimal airflow and temperature throughout the drying cycle. By automating these functions, the STC1 helps improve drying consistency, reduce operator intervention, and produce high-quality kiln-dried lumber.

Downloads

Warranty

  • EBAC desiccant dehumidifiers are backed by the manufacturer's warranty against defects in materials and workmanship. Refer to the owner's manual for complete warranty terms and coverage.
