The EBAC PD120-D Pool & Spa Dehumidifier is a high-capacity humidity control solution designed for indoor pools, spas, and other moisture-intensive environments. Engineered to remove up to 120 pints of moisture per day, the PD120-D helps prevent condensation, mold growth, corrosion, and structural damage caused by excessive humidity.

Featuring an adjustable digital humidistat, temperature-sensitive reverse cycle defrost, and a quiet two-speed fan, the PD120-D provides efficient and reliable operation across a wide range of conditions. The self-contained design allows for quick installation, while optional ducting and remote control interfaces provide flexibility for customized humidity management systems.

Built with heavy-gauge steel construction and totally enclosed coils, the EBAC PD120-D delivers dependable performance for commercial pool rooms, spas, and demanding indoor environments.

Key Features

  • Removes up to 120 pints of moisture per day
  • Adjustable digital control humidistat
  • Remote humidistat compatibility
  • Status indicators and diagnostic menu

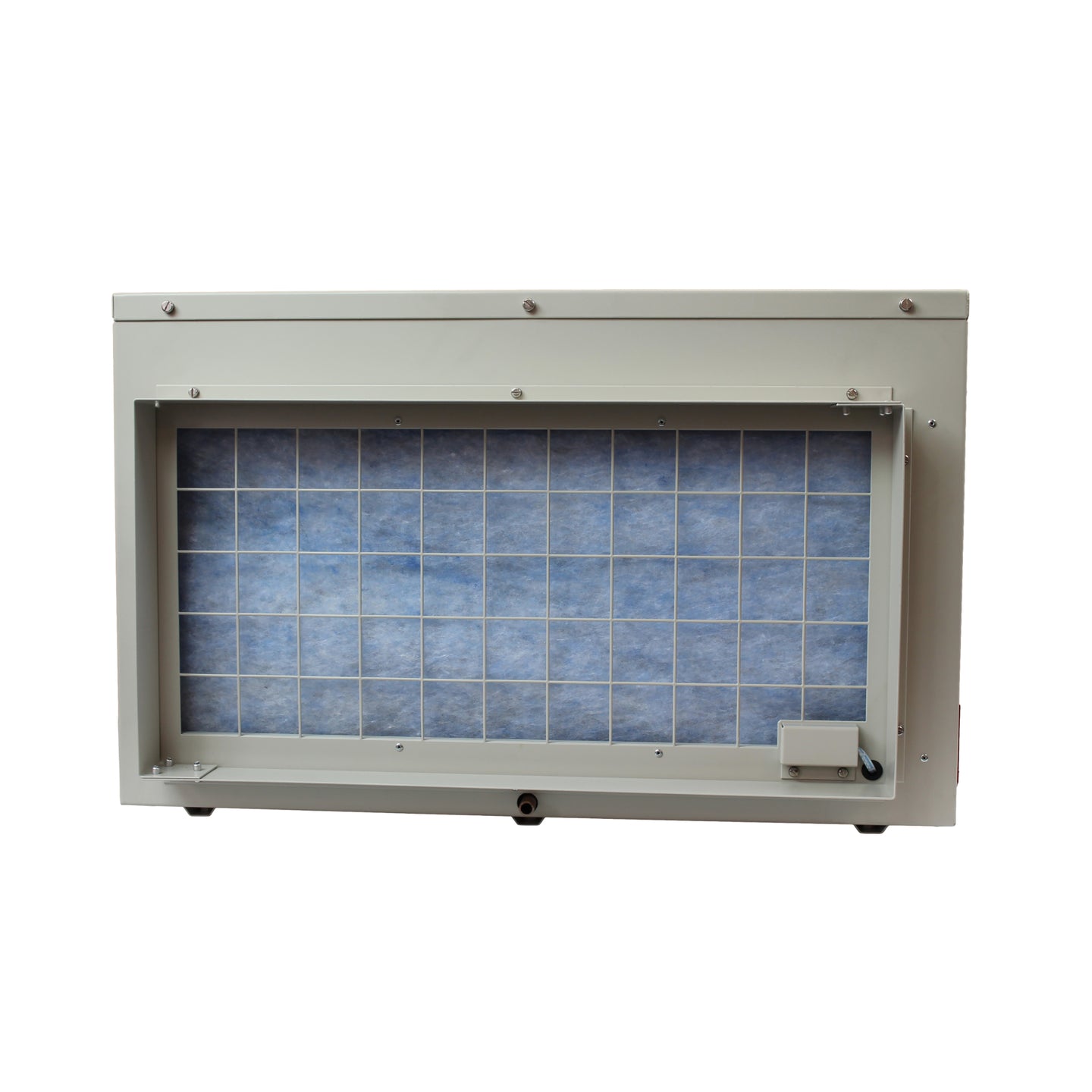

  • Easy-change cartridge air filter
  • Temperature-sensitive reverse cycle defrost system
  • Provides effective low-temperature operation
  • Quiet two-speed fan design
  • Self-contained design for easy installation
  • Optional ducting capability
  • Totally enclosed coils in epoxy-coated heavy-gauge steel case
  • Remote touch control panel interface option
  • Designed for pool and spa humidity control applications

Specifications

  • Brand: EBAC
  • Model: PD120-D
  • Type: Pool & Spa Dehumidifier
  • Part Numbers: 10154GY-US, 10155GY-US
  • Voltage Options: 110V / 220V
  • Phase: 1
  • Frequency: 60 Hz
  • Power Consumption: 1200 W
  • Current:
    • 110V: 10.5 A
    • 220V: 5.5 A
  • Typical Extraction (80°F / 60% RH): 120 PPD
  • Typical Extraction (80°F / 80% RH): 140 PPD
  • Heat Recovery: 9,350 BTU
  • Airflow Low Speed:
    • 110V: 262 CFM
    • 220V: 586 CFM
  • Airflow High Speed:
    • 110V: 492 CFM
    • 220V: 665 CFM
  • Noise Level: 69 dBA
  • Refrigerant:
    • 110V Model: R454c
    • 220V Model: R32
  • Effective Volume: 10,594 cu. ft.
  • Minimum Operating Temperature: 33°F
  • Maximum Operating Temperature: 95°F
  • Heat Recovery: 9,350 BTU
  • Height: 17.5 in.
  • Width: 27.5 in.
  • Depth: 26 in.
  • Weight: 137 lbs.

What's Included

  • PD120-D 110V
    • 1 × PD120-D 110V Dehumidifier
    • 1 × PD120-D 110V Owner’s Manual
    • 1 × 6 Pin Plug
    • 1 × 3/8" PVC Tube I/D – 3M Long
    • 1 × Jubilee Clip
  • PD120-D 220V
    • 1 × PD120-D 220V Dehumidifier
    • 1 × PD120-D 220V Owner’s Manual
    • 1 × 6 Pin Plug
    • 1 × 3/8" PVC Tube I/D – 3M Long
    • 1 × Jubilee Clip

Downloads

Warranty

  • 1-Year Limited Manufacturer Warranty against defects in materials and workmanship. Warranty coverage is subject to EBAC's standard warranty terms and conditions.
