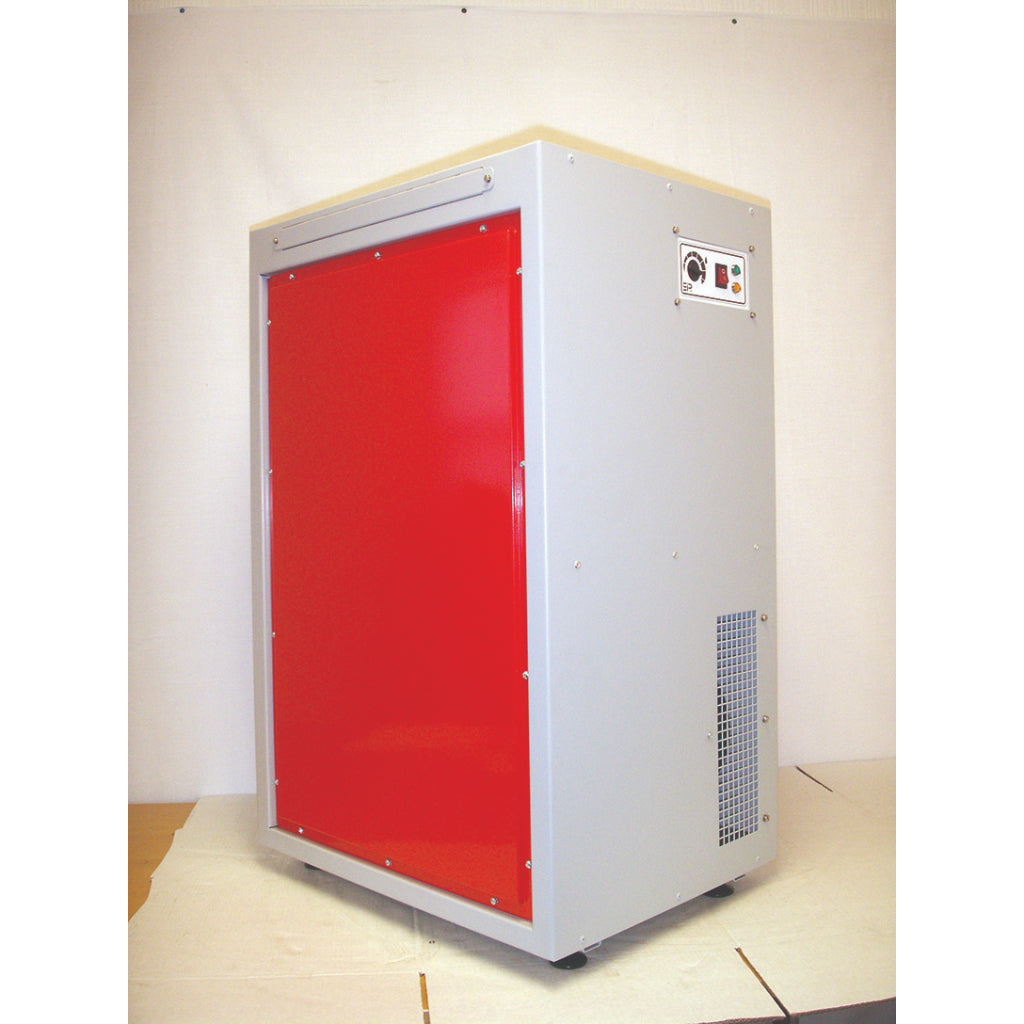

The EBAC FreeStar is a high-capacity commercial and industrial dehumidifier designed to provide energy-efficient humidity control for demanding HVAC and environmental control applications. Ideal for offices, laboratories, storage facilities, restaurants, museums, telecommunications rooms, basements, warehouses, and industrial environments, the FreeStar delivers exceptional moisture removal while maintaining low energy consumption.

Engineered with a high-efficiency rotary compressor, integrated air-to-air heat exchanger, and EIPL's unique Reverse Cycle defrost system, the FreeStar provides reliable operation across a wide range of temperatures. Its high static backward inclined fan maximizes airflow over long distances, while the internal condensate pump enables continuous unattended drainage.

The FreeStar removes excess moisture through an advanced refrigeration process. Humid air passes across the evaporator coil where moisture condenses and is collected before being automatically discharged by the internal condensate pump. The recovered heat and integrated air-to-air heat exchanger improve efficiency by pre-cooling and drying incoming air before it is reheated and returned to the conditioned space. This continuous process helps reduce condensation, mold, mildew, corrosion, and moisture damage in commercial and industrial environments.

Key Features

  • High-capacity commercial and industrial dehumidifier
  • Removes up to 105 pints of moisture per day under typical operating conditions
  • High-efficiency operation with EER of 10.8
  • Two-stage cooling and drying system
  • Integrated air-to-air heat exchanger for improved drying efficiency
  • High-efficiency rotary compressor
  • High static backward inclined fan for long-distance airflow
  • EIPL Reverse Cycle defrost system for reliable low-temperature operation
  • Internal high-capacity condensate pump
  • Internal or external humidistat compatibility
  • Washable inlet air filter
  • Adjustable leveling feet
  • Ground Fault Interrupter (GFI) protection

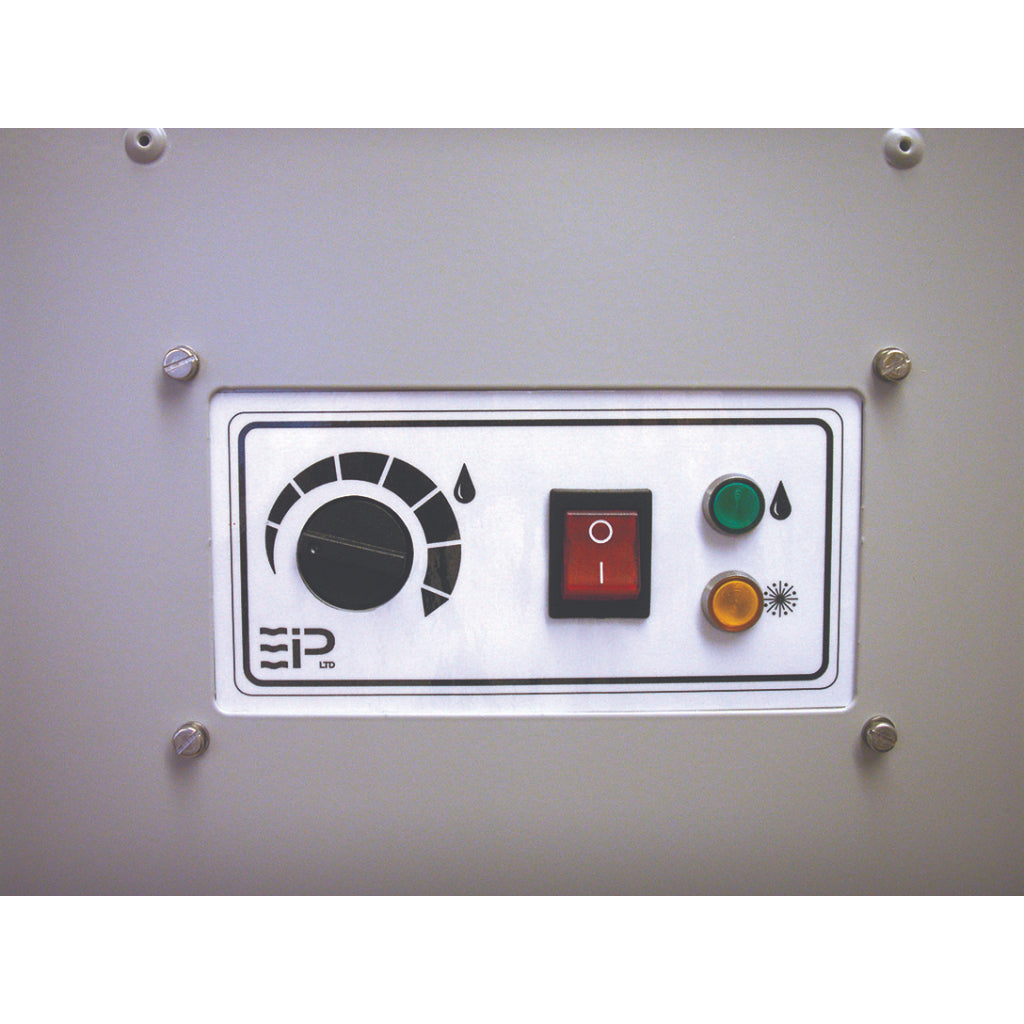

  • Drying and defrost status indicator lamps
  • Rugged epoxy powder-coated chassis
  • Low amp draw for energy-efficient operation
  • Designed for HVAC systems, warehouses, laboratories, museums, telecommunications rooms, and industrial facilities
  • Helps prevent condensation, mold growth, rust, and corrosion

Specifications

  • Type: Commercial / Industrial HVAC Dehumidifier
  • Model: FreeStar
  • Part Number: 10283GR-US
  • Voltage: 110V
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Power Consumption: 900 W
  • Current: 8 A
  • Airflow: 914 m³/hr
  • Noise Level: 57 dBA
  • Effective Coverage Volume: 300 m³
  • Typical Extraction Capacity: 105 pints/day
  • Minimum Operating Temperature: 33°F
  • Maximum Operating Temperature: 105°F
  • Height: 38 in.
  • Width: 24 in.
  • Depth: 19 in.
  • Weight: 160 lbs.
  • Construction: Epoxy Powder-Coated Steel Chassis
  • Compressor Type: High-Efficiency Rotary Compressor
  • Defrost System: Reverse Cycle Automatic Defrost
  • Condensate Drain: Internal High-Capacity Pump
  • Air Filter: Washable Inlet Filter
  • Humidistat: Internal / External Humidistat Compatible

What's Included

  • 1x FreeStar Dehumidifier
  • 1x FreeStar Owner's Manual
  • 1x 6-Pin Plug
  • 1x PVC Tube – 3/8" I.D. – 7.8m Long
  • 1x Quick Release Hose Clip

Compatible Products

  • EBAC HVAC Humidity Control Systems
  • EBAC Industrial Moisture Control Systems
  • EBAC Condensate Drainage Accessories
  • EBAC Replacement Air Filters

Downloads

Warranty

  • Manufacturer warranty applies. Contact Grimeworks for complete warranty details and support information.
