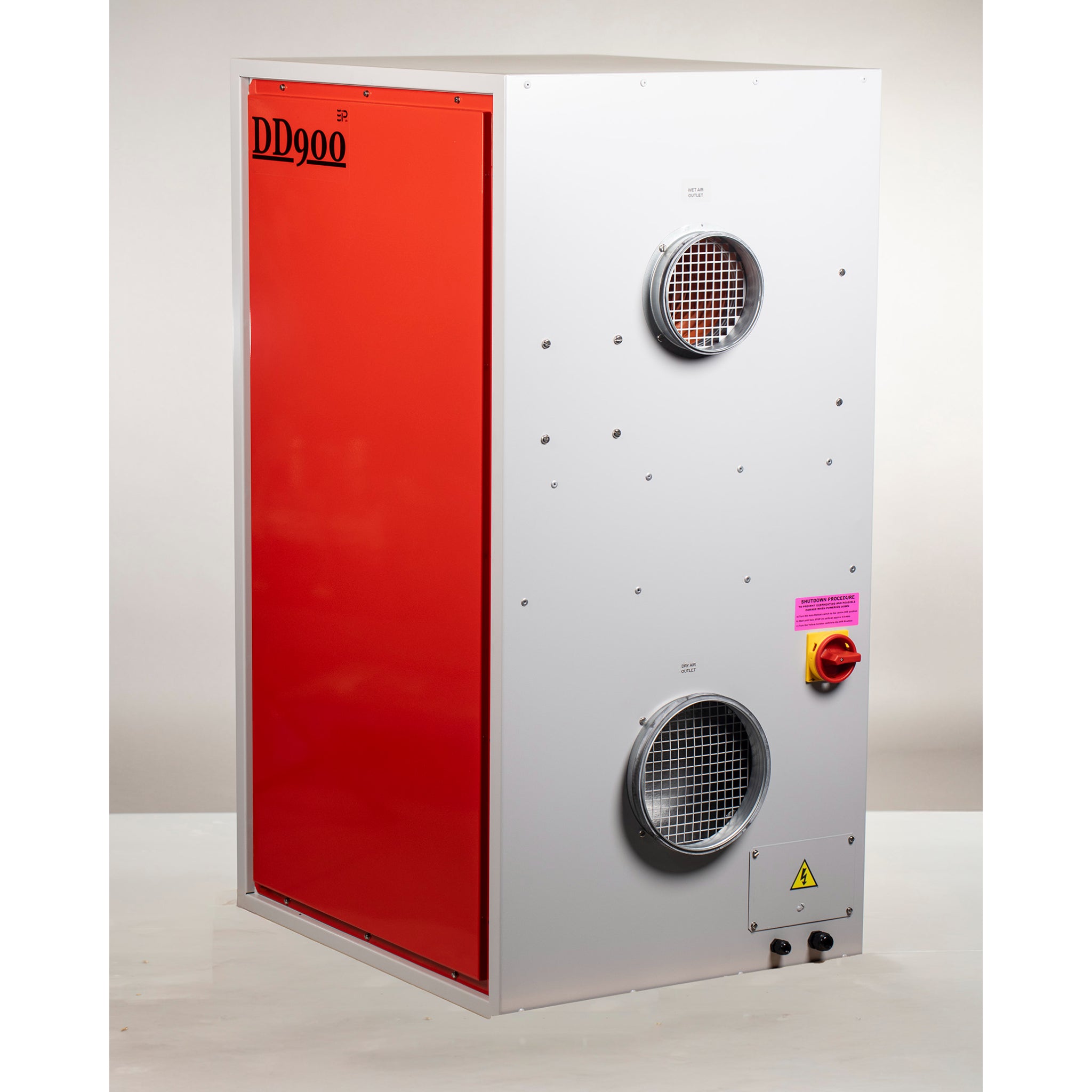

The EBAC DD900 Desiccant Dehumidifier is a high-capacity industrial humidity control system designed for demanding commercial and manufacturing environments. Using advanced desiccant rotor technology, it effectively removes moisture even in cold conditions down to -4°F, making it ideal for facilities where refrigeration-based dehumidifiers are less effective.

Available in 220V and 460V three-phase configurations, the DD900 delivers up to 364 PPD of moisture removal while offering multiple operating modes including High Extraction, High Efficiency, and Deep Drying. Its electronically controlled operation, EC high-efficiency fan, adjustable thermostat, and energy-efficient PTC heaters provide reliable, energy-conscious performance for warehouses, manufacturing plants, storage facilities, pharmaceutical production, food processing, and other humidity-sensitive applications.

Designed for continuous industrial operation, the DD900 features remote humidity sensor capability, variable fan speeds, status indicators, process and regeneration air filters, and integrated safety controls to ensure dependable performance in challenging environments.

Key Features

  • High-capacity desiccant dehumidifier with up to 364 PPD moisture removal
  • Available in 220V or 460V, 3-phase, 60Hz
  • Operates in temperatures from -4°F to 104°F
  • Adjustable thermostat for precise humidity control
  • High-efficiency EC fan with variable speed operation
  • Energy-efficient high-capacity PTC heaters
  • Three operating modes: High Extraction, High Efficiency, and Deep Drying
  • Remote humidity sensor compatibility
  • Electronic controls with manual or automatic operation

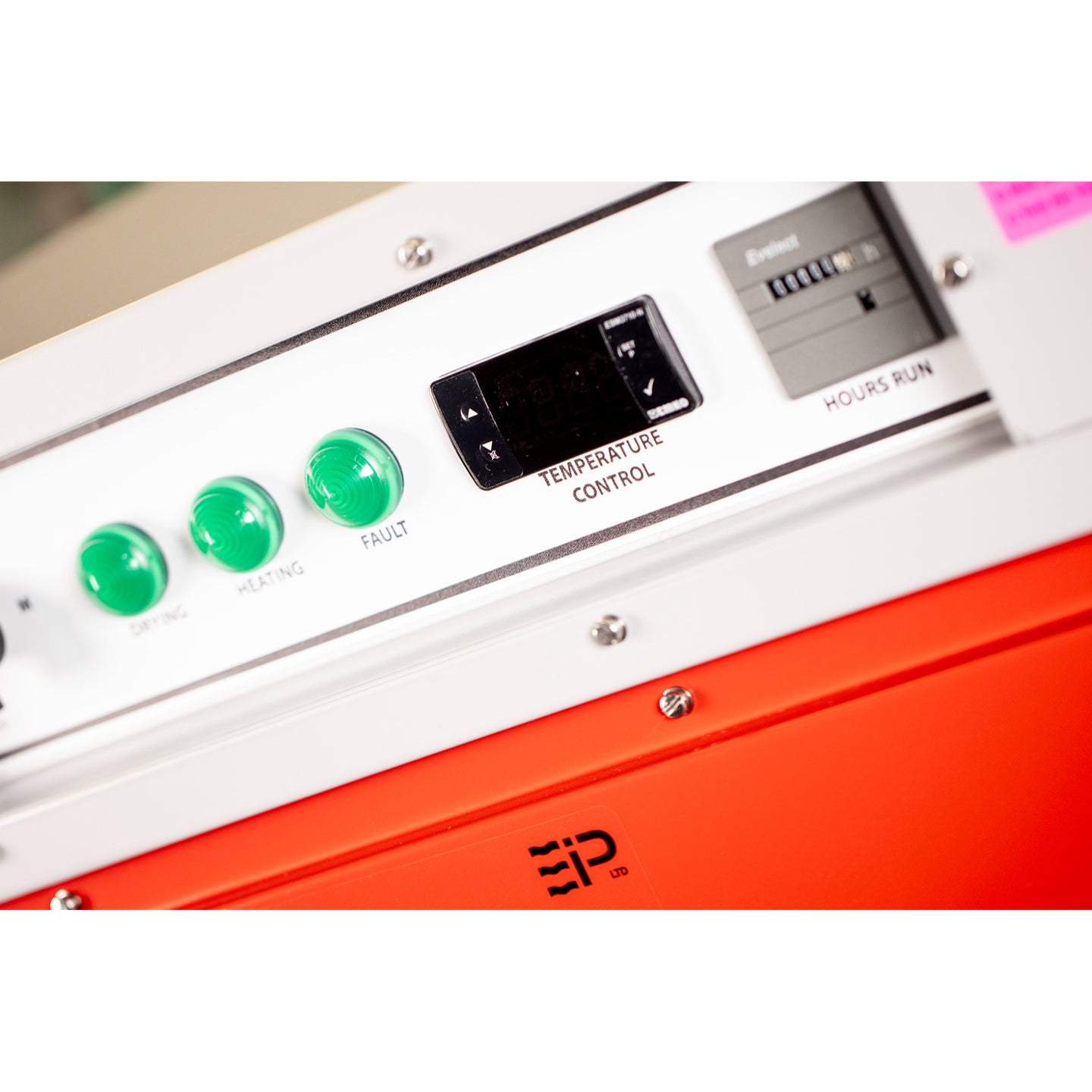

  • Built-in hours run meter and status indicators
  • Dual air inlet design for improved airflow
  • Process and regeneration air filters
  • High-temperature safety cut-outs
  • Self-contained, free-standing industrial design
  • Optional stainless steel construction and duct attachments available

Specifications

220V Model

  • Part Number: 10520GR-US
  • Voltage: 220V
  • Phase: 3
  • Frequency: 60Hz

460V Model

  • Part Number: 10521GR-US
  • Voltage: 460V
  • Phase: 3
  • Frequency: 60Hz

Common Specifications

  • Dimensions (H × W × D): 48 × 28 × 23 in
  • Weight: 198 lbs
  • Power: 9.8 kW
  • Maximum Process Airflow: 883 CFM
  • Process Airflow: 530 CFM
  • Regeneration Airflow: 147 CFM
  • Process Air Duct Size: 8 in
  • Regeneration Air Duct Size: 6 in
  • Rotor Wheel Speed: 13.6 RPH
  • High Extraction Capacity: 364 PPD @ 27°C / 60% RH
  • High Efficiency Capacity: 286 PPD @ 27°C / 60% RH
  • Deep Drying Capacity: 323 PPD @ 27°C / 60% RH
  • Minimum Operating Temperature: -4°F
  • Maximum Operating Temperature: 104°F

What's Included

  • DD900 220V
    • 1 × DD900 220V Desiccant Dehumidifier
    • 1 × Owner's Manual
  • DD900 460V
    • 1 × DD900 460V Desiccant Dehumidifier
    • 1 × Owner's Manual

Downloads

Warranty

  • 1-Year Limited Manufacturer Warranty against defects in materials and workmanship. Warranty coverage is subject to EBAC's standard warranty terms and conditions.
