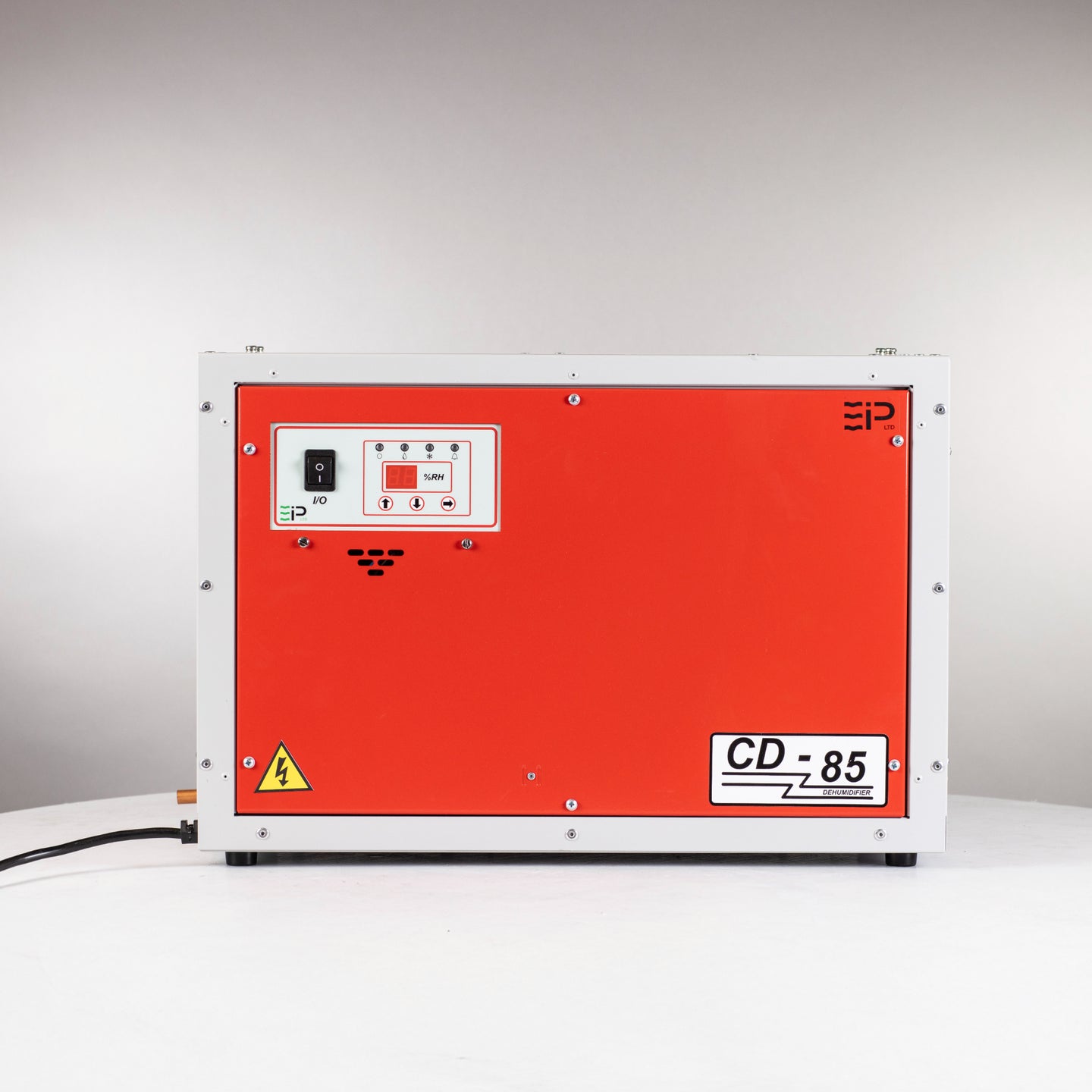

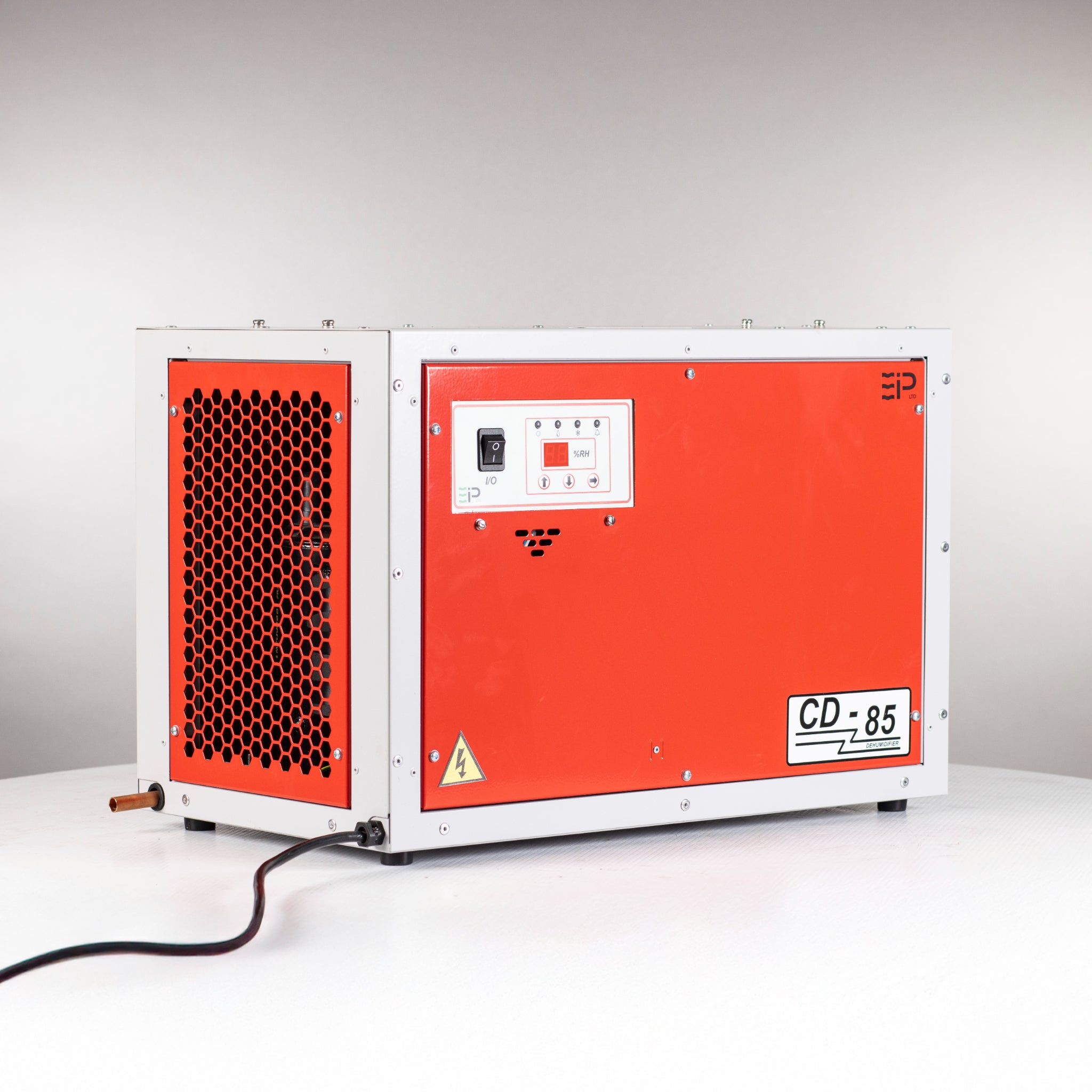

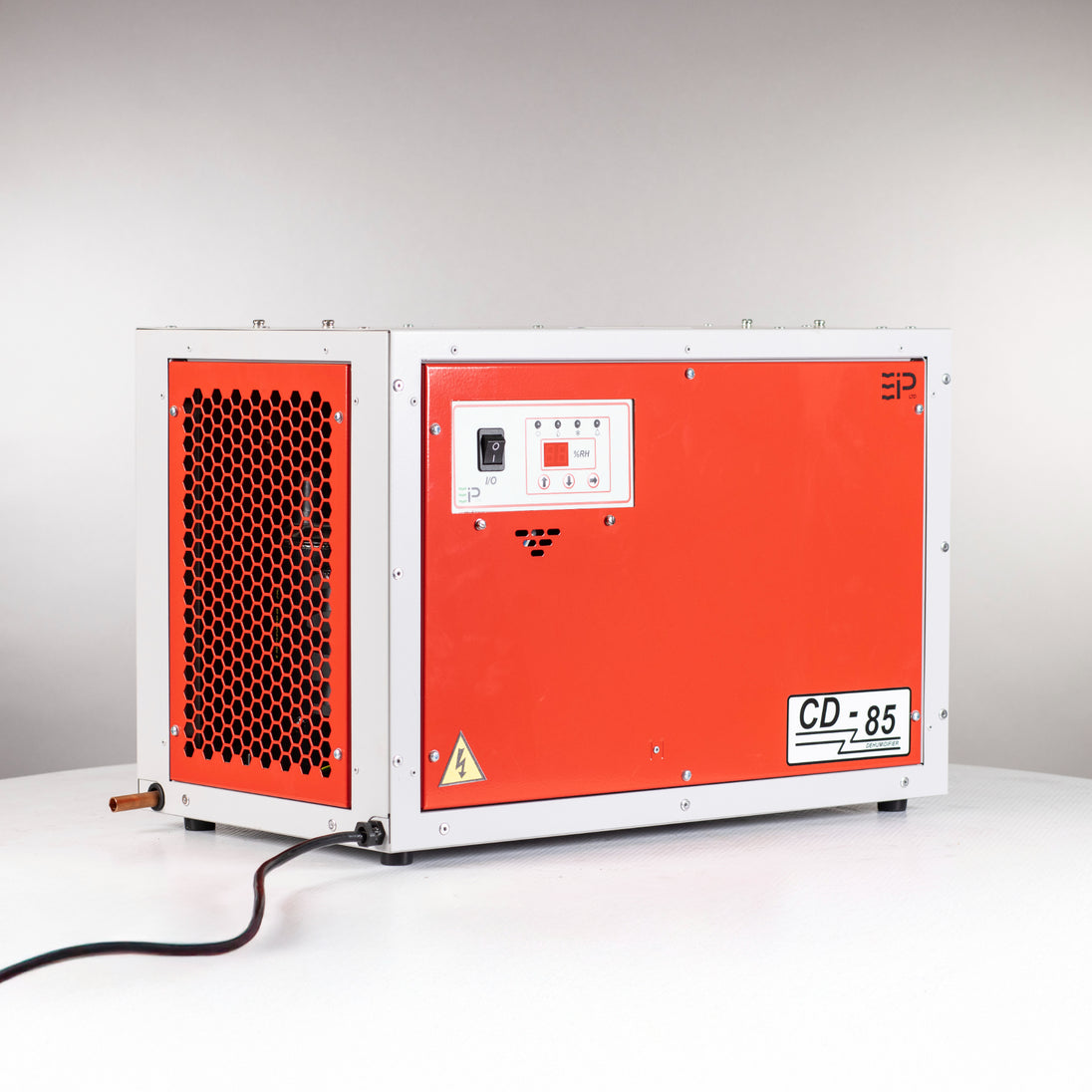

The EBAC CD85-D is a high-capacity commercial and industrial dehumidifier engineered to provide energy-efficient humidity control in demanding environments. Designed for offices, laboratories, storage facilities, restaurants, museums, locker rooms, telecommunications rooms, basements, crawl spaces, and other moisture-prone areas, the CD85-D delivers dependable moisture removal while maintaining a controlled indoor environment.

Equipped with an adjustable digital humidistat, configurable air inlet and outlet positions, and EIP's unique hot gas defrost system, the CD85-D offers flexible installation and reliable operation even in low-temperature conditions. Its rugged epoxy powder-coated steel chassis is built to withstand continuous commercial use, while the integrated condensate pump allows automatic water removal to elevated drainage points.

Using advanced refrigeration technology, the CD85-D removes excess moisture by drawing humid air across the evaporator coil where condensation forms. The collected water is automatically discharged by the built-in condensate pump, while the recovered heat is used to warm the dry air before it is returned to the room. This continuous process helps prevent condensation, mold growth, corrosion, and moisture damage while maintaining optimal humidity levels.

Key Features

  • High-capacity commercial and industrial dehumidifier

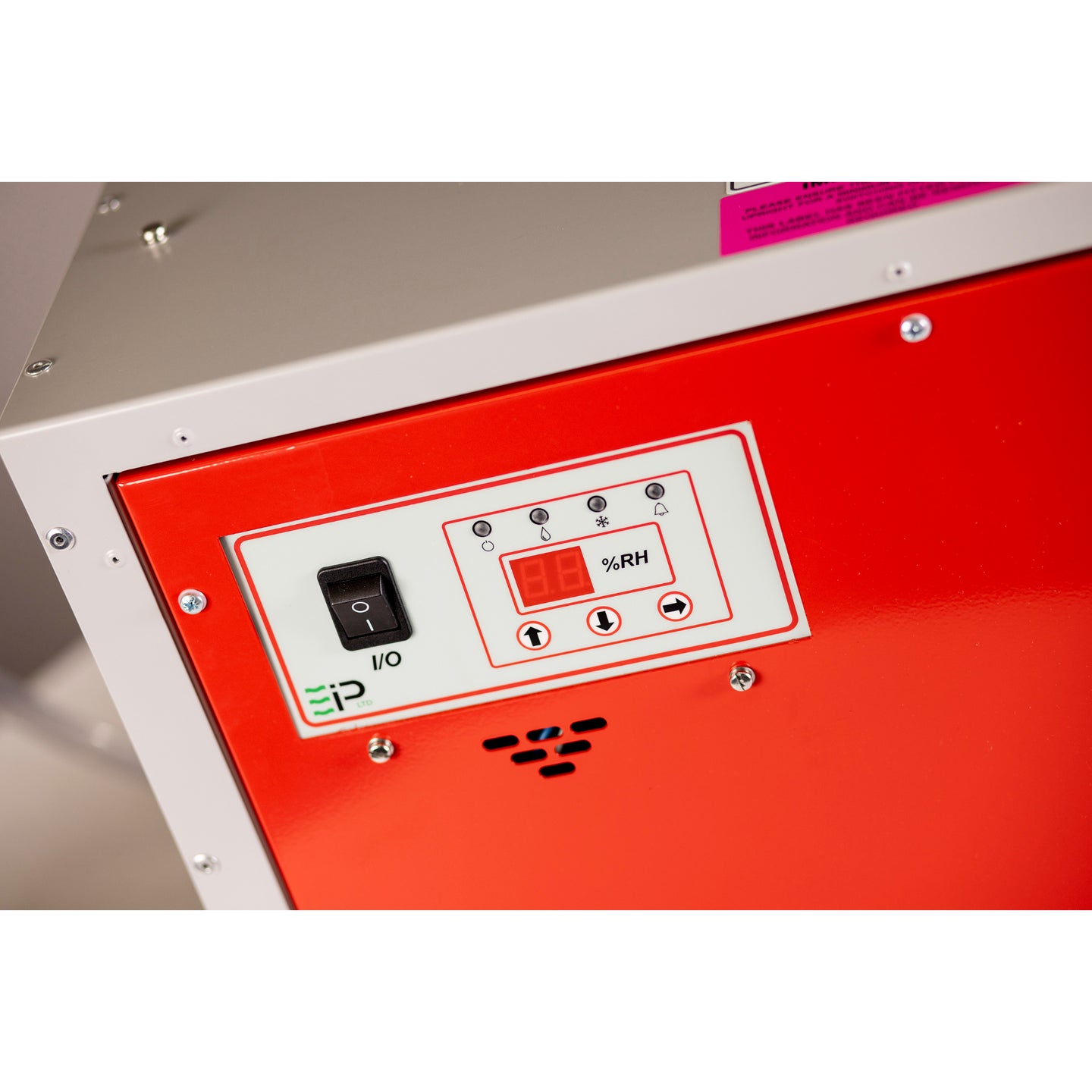

  • Adjustable digital humidistat for precise humidity control
  • Removes up to 56 pints of moisture per day under typical operating conditions
  • Configurable inlet and outlet positions for installation flexibility
  • Built-in inlet air filter
  • EIP unique hot gas defrost system for efficient low-temperature operation

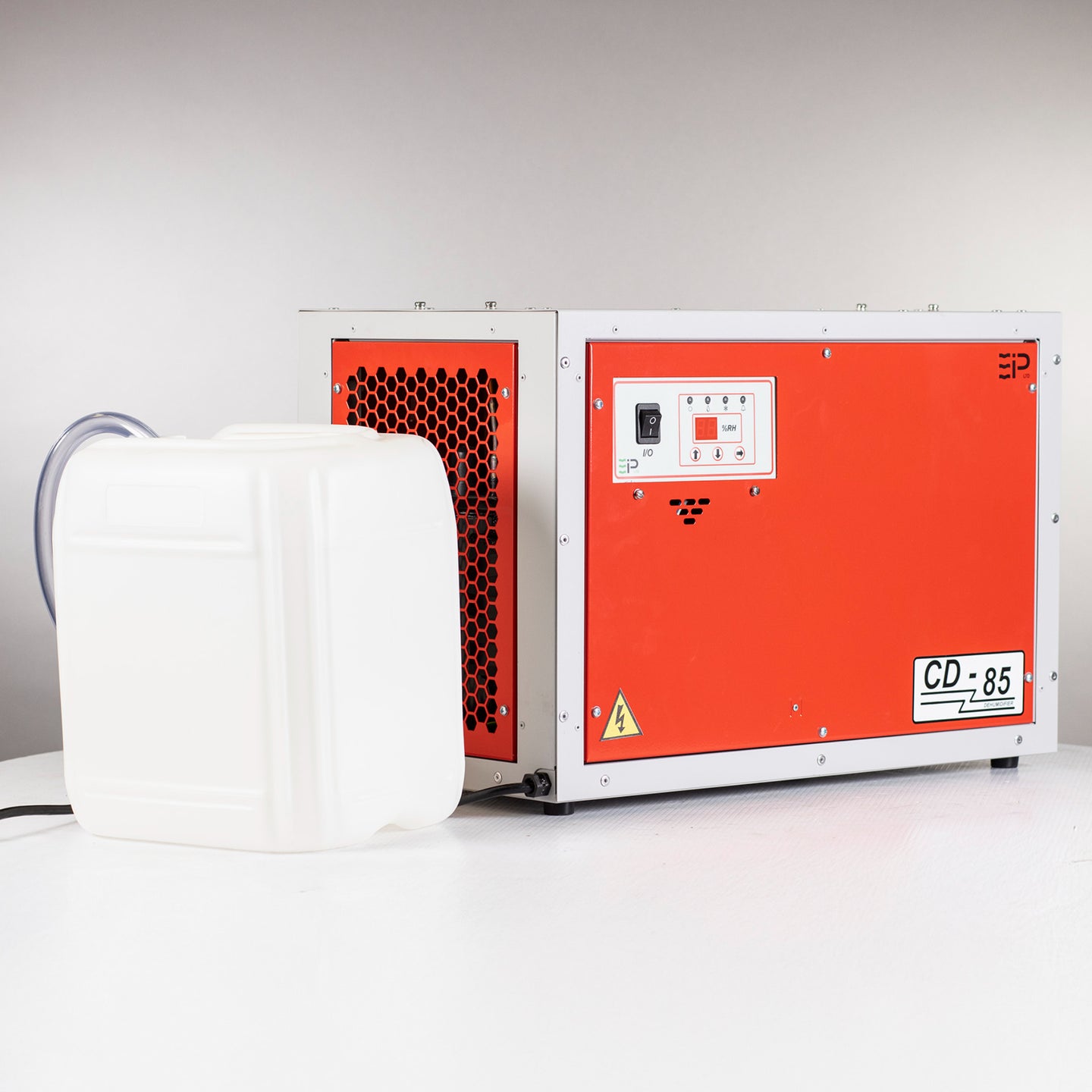

  • Fully automatic internal condensate pump
  • Capable of pumping condensate to higher drainage points
  • Rugged epoxy powder-coated steel chassis and housing
  • High-efficiency rotary compressor
  • Standard 115V plug for quick installation
  • Extra-long power cord
  • Rubber anti-vibration feet for quieter operation
  • Designed for offices, laboratories, warehouses, crawl spaces, museums, and telecommunications rooms
  • Helps prevent condensation, mold, mildew, rust, and corrosion
  • Built for continuous commercial humidity control

Specifications

  • Type: Commercial / Industrial Dehumidifier
  • Model: CD85-D (Digital)
  • Part Number: 11293GL-US
  • Voltage: 110V
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Power Consumption: 880 W
  • Current: 7 A
  • Airflow: 230 CFM
  • Noise Level: 57 dBA
  • Refrigerant: R407C
  • Effective Coverage Volume: 8,370 cu. ft.
  • Typical Extraction Capacity: 56 pints/day
  • Minimum Operating Temperature: 33°F
  • Maximum Operating Temperature: 95°F
  • Height: 15.75 in.
  • Width: 23.6 in.
  • Depth: 13.5 in.
  • Weight: 75 lbs.
  • Construction: Epoxy powder-coated steel chassis and housing
  • Compressor Type: High-efficiency rotary compressor
  • Control: Adjustable Digital Humidistat
  • Drain System: Fully Automatic Internal Condensate Pump
  • Air Filter: Inlet Filter
  • Airflow Configuration: Configurable Inlet and Outlet Positions

What's Included

  • 1x CD85-D Dehumidifier
  • 1x CD85-D Owner's Manual
  • 1x PVC Tube – 3/8" I.D. – 3m Long
  • 1x Jubilee Clip
  • 2x Handles

Compatible Products

  • EBAC Industrial Moisture Control Systems
  • EBAC Dehumidifier Accessories
  • EBAC Condensate Drainage Accessories

Downloads

Warranty

  • Manufacturer warranty applies. Contact Grimeworks for complete warranty details and support information.
