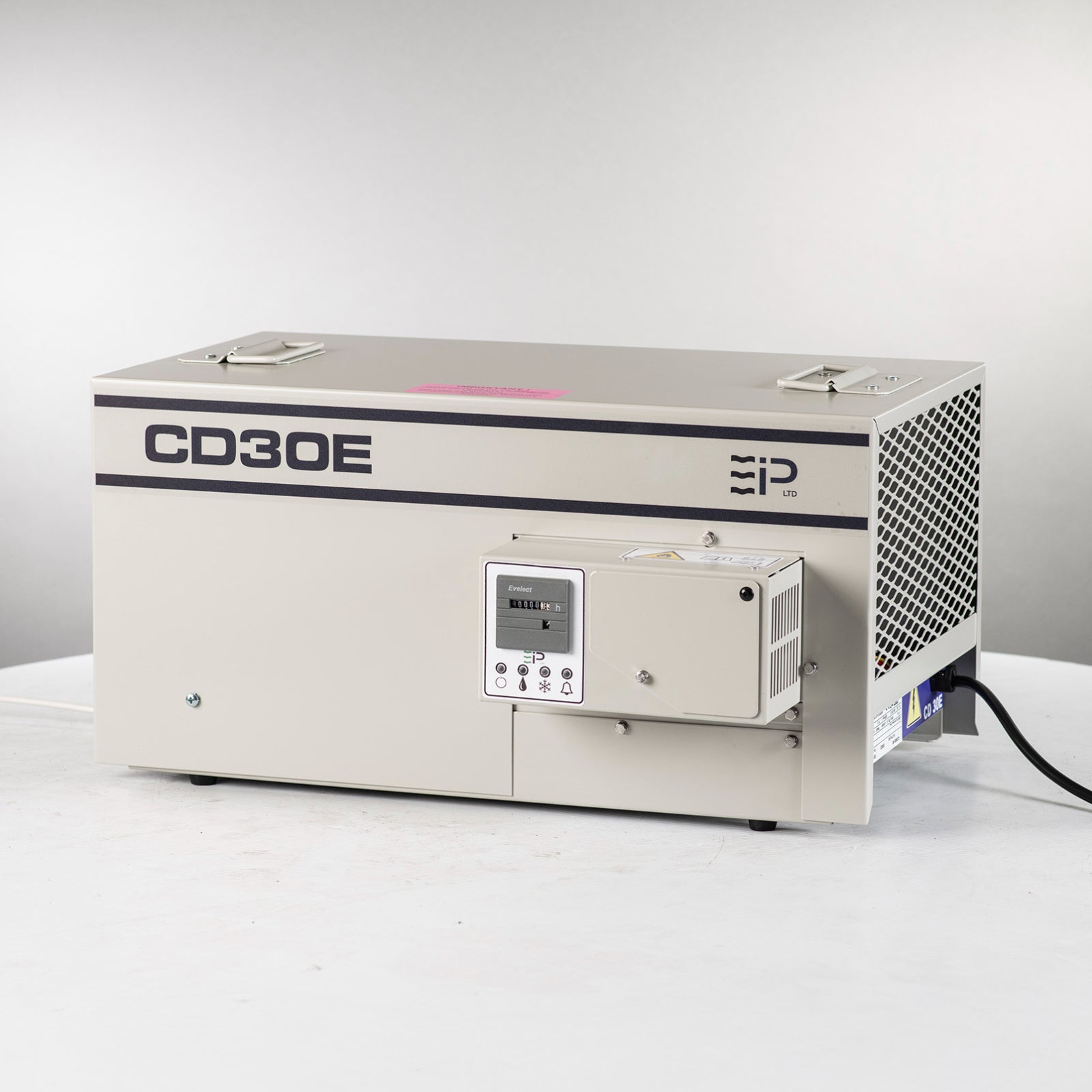

The EBAC CD30-S and CD30-SE are compact, high-efficiency industrial dehumidifiers designed for reliable moisture control in demanding environments. Built for permanent installation or portable use, these units are ideal for applications including pump stations, pipe galleries, electronic equipment areas, warehouses, crawl spaces, factories, and other areas affected by excess humidity.

Using advanced refrigeration dehumidification technology, the CD30-S and CD30-SE draw humid air across a cold evaporator coil where moisture condenses and is removed through the drainage system. The recovered heat is then used to reheat the dried air before returning it to the room, providing efficient humidity reduction while maintaining a stable environment.

The durable steel construction, enclosed coils, automatic defrost system, and energy-efficient operation make the EBAC CD30-S family a dependable solution for preventing corrosion, mold growth, condensation, and moisture-related damage. The CD30-SE model adds enhanced monitoring features, including an adjustable alarm humidistat, voltage-free alarm signal, operating indicators, and wall mounting capability for remote installations.

Key Features

  • High-efficiency industrial dehumidification for demanding environments
  • Compact design ideal for small spaces and restricted areas
  • Removes up to 24 pints of moisture per day at 80°F and 60% RH
  • Suitable for crawl spaces, warehouses, factories, marine environments, and equipment rooms
  • Durable heavy gauge steel case construction
  • Totally enclosed coils for increased protection and reliability
  • Automatic defrost system for efficient operation in low temperatures
  • Adjustable control humidistat for maintaining desired humidity levels
  • Convenient drain point for continuous moisture removal
  • EIPL unique hot gas temperature-sensitive defrost system
  • Sturdy carrying handles for easy transport
  • CD30-SE includes adjustable alarm humidistat for humidity monitoring
  • CD30-SE provides voltage-free alarm signal for remote monitoring
  • CD30-SE includes power-on indicator and hours run meter
  • CD30-SE supplied with wall mounting bracket and installation accessories
  • Environmentally friendly R290 refrigerant

Specifications

  • Type: Industrial Dehumidifier
  • Models: CD30-S, CD30-SE
  • Part Numbers: 11420GY-US, 11420GS-US
  • Voltage: 110V / 100V
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Current: 4 A
  • Power Consumption: 480 W
  • Airflow: 88 CFM
  • Noise Level: 47 dBA
  • Refrigerant: R290
  • Effective Coverage Volume: 3,000 cu. ft.
  • Extraction Capacity @ 65°F / 60% RH: 15 pints/day
  • Efficiency @ 65°F / 60% RH: 1.35 L/kW
  • Typical Extraction @ 80°F / 60% RH: 24 pints/day
  • Typical Efficiency @ 80°F / 60% RH: 1.83 L/kW
  • Minimum Operating Temperature: 33°F
  • Maximum Operating Temperature: 95°F
  • Height: 12 in.
  • Width: 12 in.
  • Depth: 22 in.
  • Weight: 50 lbs.
  • Construction: Heavy gauge steel case
  • Drain Connection: 12mm ID PVC tube

What's Included

  • CD30-S Package
    • 1x CD30-S Static Dryer
    • 1x CD30-S Owner’s Manual
    • 1x 12mm ID PVC Tube – 3m Long
    • 1x Jubilee Clip
  • CD30-SE Package
    • 1x CD30-SE Static Dryer
    • 1x CD30-SE Owner’s Manual
    • 1x Wall Mounting Bracket
    • 1x 12mm ID PVC Tube – 3m Long
    • 1x Jubilee Clip
    • 3x Brass Wood Screws
    • 3x Rawl Plugs

Compatible Products

  • EBAC Industrial Moisture Control Systems
  • EBAC Dehumidifier Installation Accessories
  • EBAC Drainage Accessories

Downloads

Warranty

  • Manufacturer warranty applies. Contact Grimeworks for complete warranty details and support information.
