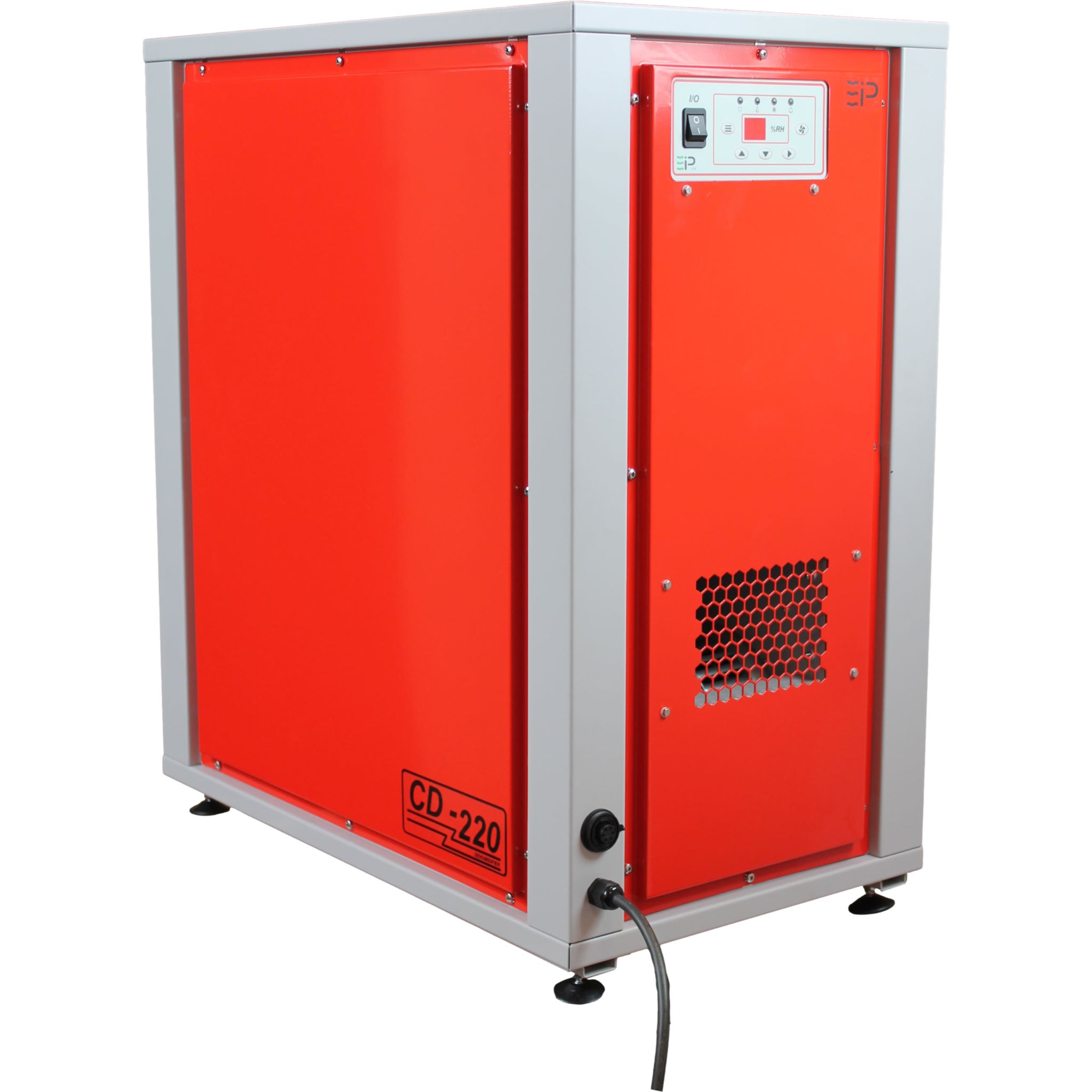

The EBAC CD220-D is a high-capacity commercial and industrial dehumidifier engineered to provide efficient humidity control in medium to large commercial spaces. Designed for warehouses, factories, offices, storage facilities, and other demanding environments, the CD220-D delivers powerful moisture removal while helping protect buildings, equipment, and inventory from excess humidity.

Featuring an adjustable digital humidistat, remote humidistat capability, and EIP's unique Reverse Cycle defrost system, the CD220-D provides reliable operation across a wide range of temperatures. Its quiet two-speed centrifugal fan delivers high airflow for improved air circulation, while the integral high-capacity condensate pump allows continuous unattended drainage. The self-contained design enables quick installation without ductwork, while optional duct flanges provide additional installation flexibility when ducted applications are required.

The CD220-D removes excess moisture through an advanced refrigeration process. Humid air is drawn across the evaporator coil where moisture condenses and is automatically discharged through the internal condensate pump. The recovered heat is then used to warm the dried air before it is returned to the conditioned space, helping reduce condensation, mold, mildew, corrosion, and moisture-related damage while maintaining optimal humidity levels.

Key Features

  • High-capacity commercial and industrial dehumidifier
  • Removes up to 157 pints of moisture per day under typical operating conditions
  • Adjustable digital humidistat for precise humidity control
  • Remote humidistat connection for remote sensing and control
  • Integral high-capacity condensate pump
  • High pump lift for continuous unattended drainage
  • EIP Reverse Cycle automatic defrost system
  • Temperature-sensitive defrost for reliable low-temperature operation
  • Quiet two-speed centrifugal fan
  • Self-contained design for quick installation
  • Can be installed with or without ductwork
  • Optional inlet and outlet duct flanges available
  • Adjustable leveling feet
  • Totally enclosed coils
  • Heavy-duty epoxy-coated steel cabinet
  • Ideal for warehouses, factories, offices, storage facilities, and commercial HVAC applications
  • Helps prevent condensation, mold growth, corrosion, and moisture damage

Specifications

  • Type: Commercial / Industrial HVAC Dehumidifier
  • Model: CD220-D
  • Part Number: 11181GR-US
  • Voltage: 220V
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Power Consumption: 2.3 kW
  • Current: 11 A
  • Airflow (Low Speed): 585 CFM
  • Airflow (High Speed): 664 CFM
  • Noise Level: 73 dBA
  • Refrigerant: R32
  • Effective Coverage Volume: 21,189 cu. ft.
  • Typical Extraction Capacity: 157 pints/day
  • Minimum Operating Temperature: 33°F
  • Maximum Operating Temperature: 95°F
  • Height: 32.7 in.
  • Width: 29.5 in.
  • Depth: 17.5 in.
  • Weight: 176 lbs.
  • Construction: Epoxy-Coated Heavy Gauge Steel Cabinet
  • Coils: Totally Enclosed
  • Fan: Two-Speed Centrifugal Fan
  • Control: Adjustable Digital Humidistat
  • Remote Control: Remote Humidistat Compatible
  • Drain System: Integral High-Capacity Condensate Pump
  • Installation: Self-Contained or Optional Ducted

What's Included

  • 1x CD220-D Dehumidifier
  • 1x CD220-D Owner's Manual
  • 1x 3/8" ID PVC Tube – 7.8m Long
  • 1x Quick Release Tube Connector

Compatible Products

  • EBAC Commercial HVAC Humidity Control Systems
  • EBAC Industrial Moisture Control Systems
  • EBAC Remote Humidistat Accessories
  • EBAC Optional Inlet & Outlet Duct Flanges
  • EBAC Condensate Drainage Accessories

Downloads

Warranty

  • Manufacturer warranty applies. Contact Grimeworks for complete warranty details and support information.
