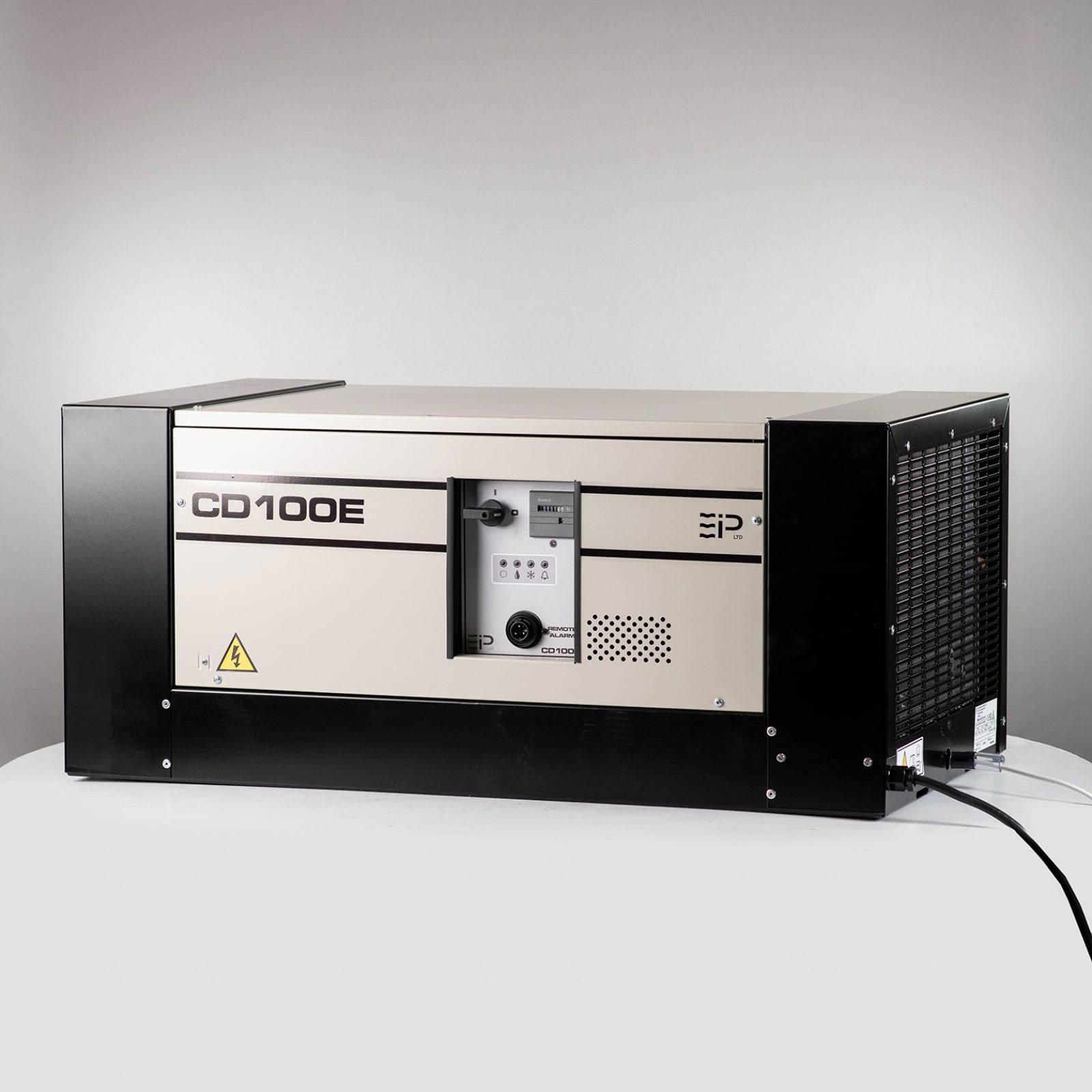

The EBAC CD100 and CD100E are high-capacity commercial and industrial dehumidifiers engineered to provide reliable humidity control in demanding environments. Designed for warehouses, storage facilities, electrical and telecommunications rooms, locker rooms, basements, pumping stations, marine vessels, and offshore installations, the CD100 series delivers dependable moisture removal while helping protect buildings and equipment from excess humidity.

Built with a rugged epoxy-coated steel chassis and a vibration-isolated floating compressor, the CD100 series is designed for long-term performance in harsh conditions. EIPL’s exclusive Reverse Cycle defrost system allows the units to operate efficiently in low ambient temperatures without frost buildup, while the adjustable humidistat automatically maintains the desired humidity level for continuous, energy-efficient operation.

The CD100E model adds enhanced monitoring capabilities with an adjustable alarm humidistat, voltage-free alarm output, power-on indicator, hours run meter, and a wall mounting kit, making it an excellent choice for permanent installations requiring remote monitoring. Whether used as a portable unit or permanently ducted into an HVAC system, the CD100 series provides dependable humidity control for commercial and industrial applications.

Key Features

  • High-capacity commercial and industrial dehumidifier
  • Removes up to 97 pints of moisture per day under typical operating conditions
  • Rugged epoxy-coated steel chassis for long service life
  • Floating compressor design reduces vibration during operation and transport
  • Adjustable humidistat for automatic humidity control
  • EIPL Reverse Cycle defrost system for reliable low-temperature operation
  • System status indicator lamps for quick operating status monitoring
  • Standard 115V power for convenient installation
  • High airflow design for efficient moisture removal
  • Suitable for permanent installation or portable operation
  • Designed for warehouses, factories, basements, marine vessels, pump stations, and telecommunications rooms
  • Helps prevent condensation, mold growth, corrosion, and moisture damage

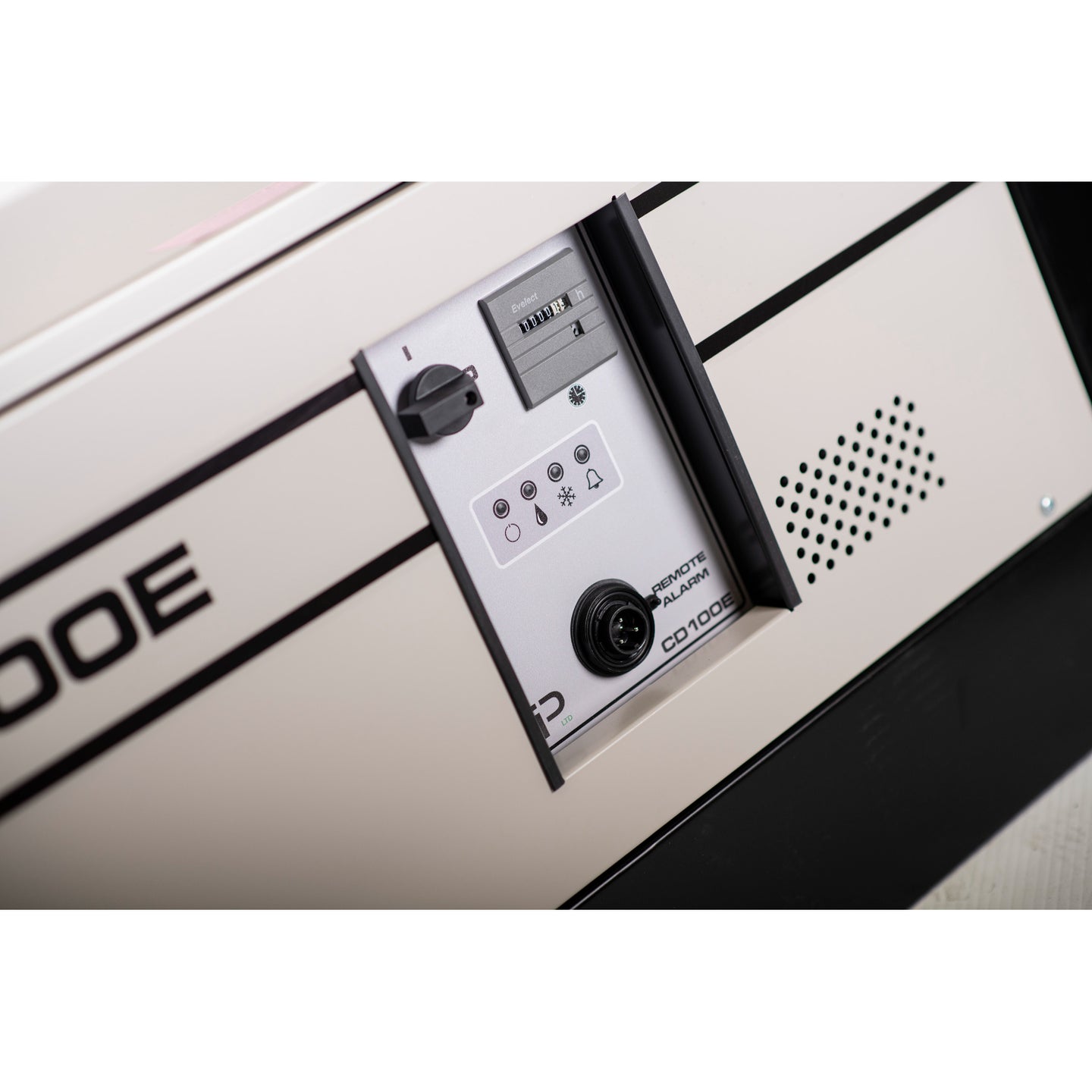

  • CD100E Additional Features:
    • Adjustable alarm humidistat
    • Voltage-free alarm connection for remote monitoring
    • Power-on indicator
    • Hours run meter
    • Wall mounting bracket included

Specifications

  • Type: Commercial / Industrial Dehumidifier
  • Models: CD100, CD100E
  • Part Numbers:
    • CD100: 11324BR-US
    • CD100E: 10273GY-US
  • Voltage: 110V
  • Phase: 1 Phase
  • Frequency: 60 Hz
  • Power Consumption: 1.09 kW
  • Current: 16 A
  • Airflow: 324 CFM
  • Noise Level: 66 dBA
  • Refrigerant: R454C
  • Effective Coverage Volume: 10,594 cu. ft.
  • Typical Extraction Capacity: 97 pints/day
  • Minimum Operating Temperature: 33°F
  • Maximum Operating Temperature: 95°F
  • Height: 16 in.
  • Width: 36 in.
  • Depth: 20 in.
  • Weight: 135 lbs.
  • Construction: Epoxy-coated steel chassis
  • Compressor Type: Floating compressor
  • Control: Adjustable Humidistat
  • Defrost System: Reverse Cycle Automatic Defrost

What's Included

  • CD100 Package
    • 1x CD100 Static Dryer
    • 1x CD100 Owner's Manual
    • 1x Jubilee Clip
    • 1x 12mm ID PVC Tubing – 3m Long
  • CD100E Package
    • 1x CD100E Static Dryer
    • 1x CD100E Owner's Manual
    • 1x Wall Mounting Kit
    • 1x Free Socket
    • 1x Jubilee Clip
    • 1x 12mm ID PVC Tubing – 3m Long

Compatible Products

  • EBAC Industrial Moisture Control Systems
  • EBAC Dehumidifier Accessories
  • EBAC Wall Mounting Accessories
  • EBAC Condensate Drainage Accessories

Downloads

Warranty

  • Manufacturer warranty applies. Contact Grimeworks for complete warranty details and support information.
