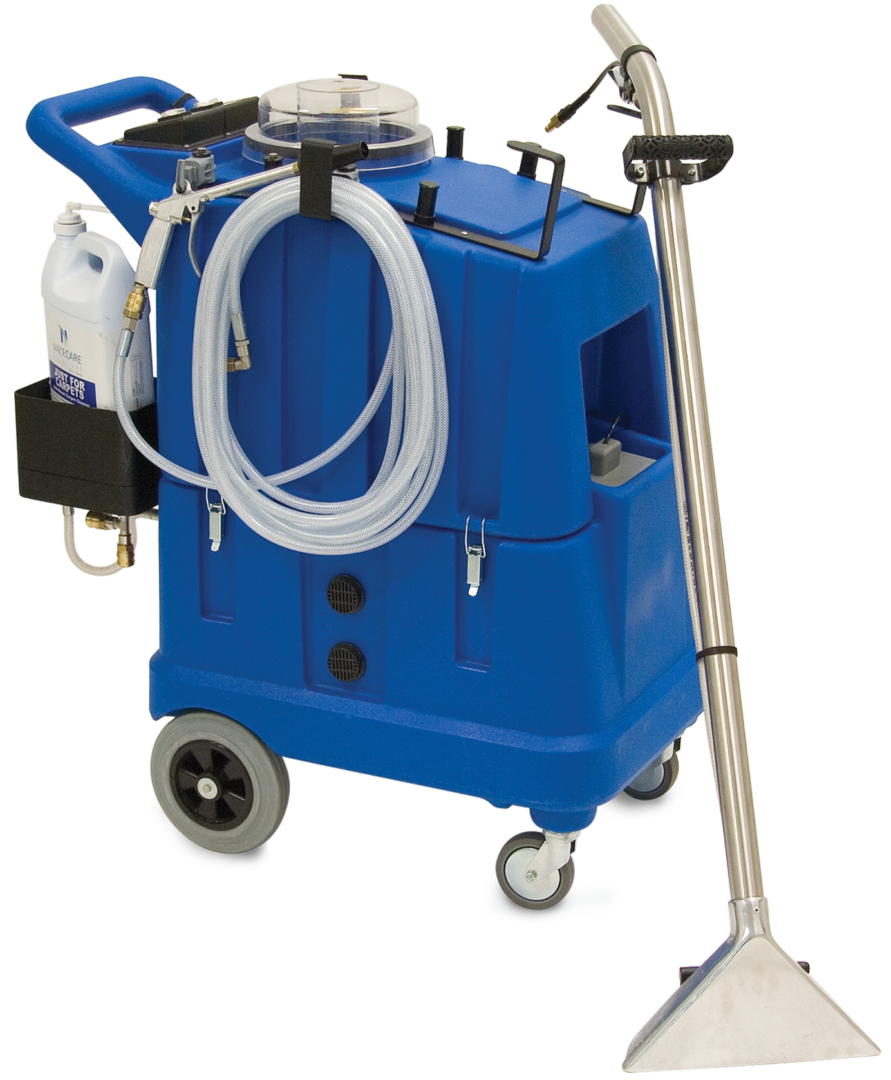

TP 18SX

The TP 18SX is a high-capacity professional carpet extraction system engineered for deep restorative cleaning in demanding commercial environments. It delivers strong suction, high-pressure solution delivery, and optional heated cleaning performance to break down embedded soils, grease, and residues at the fiber level while ensuring effective recovery for faster drying times.

Built for large-scale cleaning operations, the TP 18SX combines an 18-gallon tank system with a powerful 1.8 HP vacuum motor, providing consistent extraction performance across extensive carpeted areas. Its modular two-piece tank design improves portability despite its high capacity, allowing operators to transport and deploy the unit more efficiently in multi-room or multi-floor facilities.

Key Features

  • 1.8 HP high-performance vacuum motor for strong extraction power
  • 95 CFM airflow for consistent soil and moisture removal
  • 135-inch water lift for deep moisture extraction and faster drying
  • 130 psi diaphragm pump with bypass system for stable solution delivery
  • 1.20 gpm flow rate for efficient carpet saturation and cleaning
  • 18-gallon high-capacity solution and recovery tanks for extended operation
  • Two-piece roto-molded polyethylene construction for durability and transport efficiency
  • Optional integrated heater system for enhanced soil and grease breakdown
  • Modular split-tank design for easier lifting and transport
  • 33 ft power cord for extended operational reach
  • Designed for heavy-duty commercial and institutional carpet cleaning

Specifications

  • Product Name: TP 18SX Carpet Extraction System
  • Brand: NaceCare
  • Type: High-Capacity Heated Carpet Extractor (Optional Heat System)
  • Airflow: 95 CFM
  • Vacuum Motor: 1400 W (1.8 HP class system)
  • Pump Pressure: 130 psi
  • Pump Power: 100 W
  • Water Lift: 135 in
  • Capacity: 18.0 US gal
  • Flow Rate: 1.20 gpm
  • Noise Level: 70 dB(A)
  • Power Cord: 33 ft
  • Weight: 92 lbs
  • Dimensions (Package): 38.58" H × 37.01" L × 22.44" W
  • Working Capacity: ~800 sq. ft. per hour
  • Application: Commercial carpet extraction, restorative cleaning, and deep soil removal

Compatible Products

  • NaceCare carpet extraction wand and hose systems
  • Upholstery and detail extraction tools
  • Optional inline heater units
  • Commercial carpet cleaning chemical systems
  • Replacement spray jets and solution hoses
  • Extension cord systems (33 ft compatible)

Warranty

  • Polyethylene and Structural Foam: 10 years
  • Vacuum Motors: 2 years
  • Switches, Electrical Parts, and Pump: 2 years
  • Labor: 2 years
