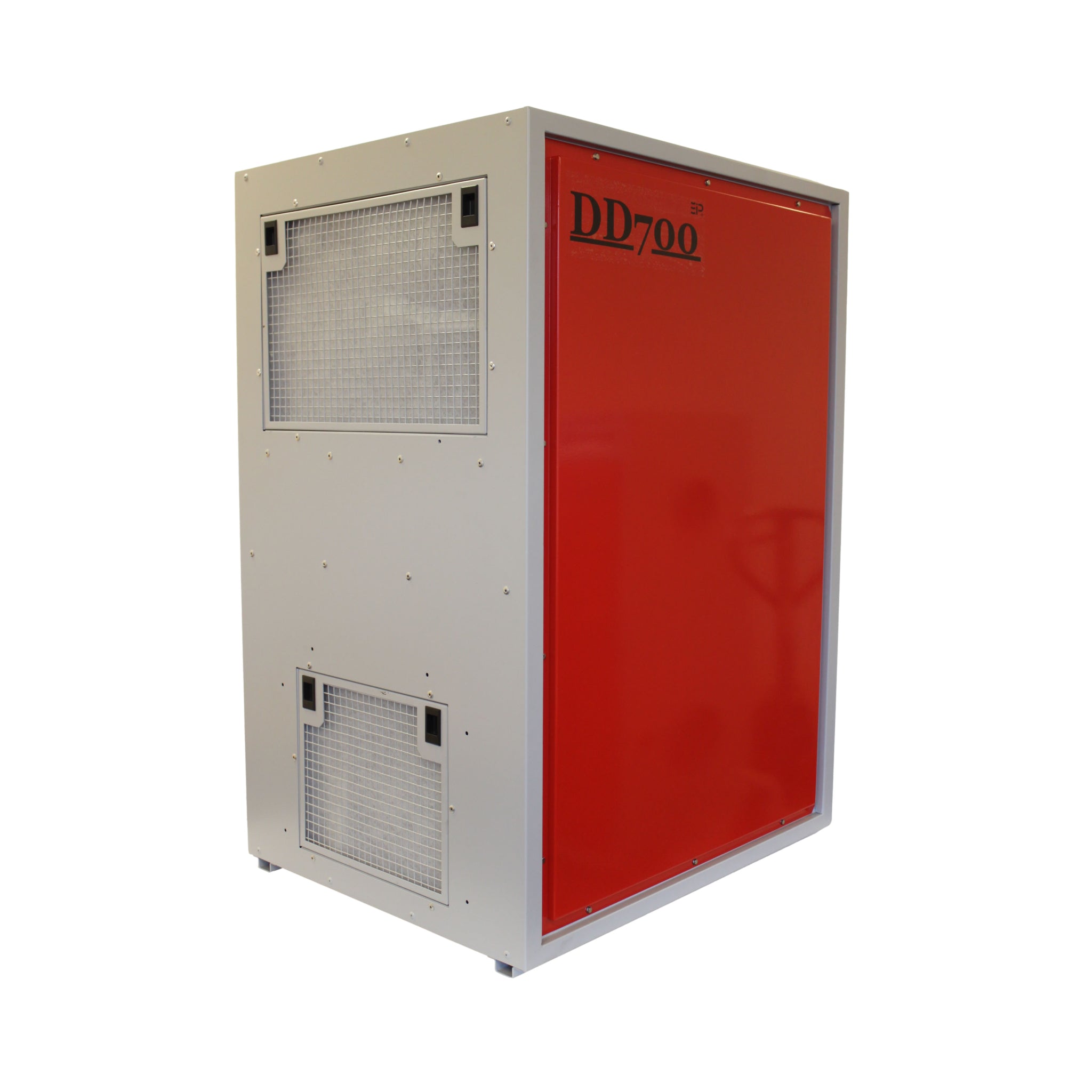

The EBAC DD700 Desiccant Dehumidifier is a high-capacity industrial humidity control system engineered for continuous operation in demanding commercial and industrial environments. Utilizing advanced desiccant rotor technology, the DD700 delivers reliable moisture removal across temperatures ranging from -4°F to 104°F, making it ideal for applications where conventional refrigerant dehumidifiers cannot perform effectively.

Available in both 220V (Part #10550GR-US) and 460V (Part #10551GR-US) configurations, the DD700 offers multiple operating modes including High Extraction, High Efficiency, and Deep Drying, allowing users to optimize performance based on their specific humidity control requirements. With EC high-efficiency fans, variable fan speeds, electronic controls, and remote humidity sensor capability, the DD700 provides exceptional flexibility for industrial moisture management.

Key Features

  • Advanced desiccant rotor technology
  • Available in 220V and 460V three-phase models
  • High Extraction mode removes up to 231 PPD
  • High Efficiency mode removes up to 184 PPD
  • Deep Drying mode removes up to 205 PPD
  • Operates from -4°F to 104°F
  • Electronic controls with manual and automatic operation
  • Adjustable thermostat
  • Remote humidity sensor capability
  • EC high-efficiency fans with variable speed control
  • High-capacity PTC heaters
  • Dual air inlet design
  • Process and regeneration air filters
  • Built-in hours run meter
  • Status indicator lights
  • Self-contained free-standing design
  • High-temperature safety cut-outs

Specifications

  • Model: DD700
  • Brand: EBAC
  • Part Numbers:
    • 220V: 10550GR-US
    • 460V: 10551GR-US
  • Voltage:
    • 220V Three Phase
    • 460V Three Phase
  • Frequency: 60 Hz
  • Power Consumption: 7.5 kW
  • Maximum Process Airflow: 883 CFM
  • Standard Process Airflow: 410 CFM
  • Regeneration Airflow: 95 CFM
  • Process Air Duct Size: 8 in.
  • Regeneration Air Duct Size: 6 in.
  • Rotor Wheel Speed: 13.6 RPH
  • High Extraction Capacity: 231 PPD
  • High Efficiency Capacity: 184 PPD
  • Deep Drying Capacity: 205 PPD
  • Typical Dry Air Off (High Extraction): 18%
  • Typical Dry Air Off (High Efficiency): 18%
  • Typical Dry Air Off (Deep Drying): 8%
  • Operating Temperature: -4°F to 104°F
  • Height: 40 in.
  • Width: 28 in.
  • Depth: 23 in.
  • Weight: 170 lbs.

What's Included

  • DD700 220V
    • 1 × EBAC DD700 220V Desiccant Dehumidifier
    • 1 × Owner's Manual
  • DD700 460V
    • 1 × EBAC DD700 460V Desiccant Dehumidifier
    • 1 × Owner's Manual

Downloads

Warranty

  • 1-Year Limited Manufacturer Warranty against defects in materials and workmanship. Warranty coverage is subject to EBAC's standard warranty terms and conditions.
